PLUG VALVES & COMPONENTS

Flow Products plug valves are built to the highest standards using advanced manufacturing techniques to ensure optimum performance and reliability.

Flow Products plug valves are used throughout the oil and gas industry worldwide in Standard and H2S service environments.

All sizes of Flow Products valves can be outfitted with your choice of end connections or combinations to suit your specific application. Custom end-to-end lengths are also available on some valves.

Applications for the plug valves include:

Blow-Out Preventer systems
Snubbing
Cementing
Well Stimulation
Sand Separator Systems
Gravel Pack applications
Coiled Tubing systems
Production Testing
Flow Back operations
Many other applications.

Contact Hoyt Sales

The Flow Product Plug Valve is a lubricated, tapered seal, quarter-turn plug valve for rapid full open or close operation. The valve cavity is tapered to ensure uniform seating of the sealing inserts, providing a reliable seal at the full range of pressures.

Configuration	Dim. A	Dim. B	Dim. C
1" x 2" Fig. 1502	10-9/16"	9-1/4"	4-5/8"
1" x 2" Fig. 1502	12"	9-1/4"	4-5/8"
1" x 2" Male LP Connection	9"	9-1/4"	4-5/8"
2" x 2" Fig. 1502	13-7/8"	10-5/8"	5-1/2"
2" x 2" Female LP Connection	8-9/16"	10-5/8"	5-1/2"

H2S svc. made per NACE MR-01-75 available in PSL-1 and PSL-2
Other combinations are available by customer request.

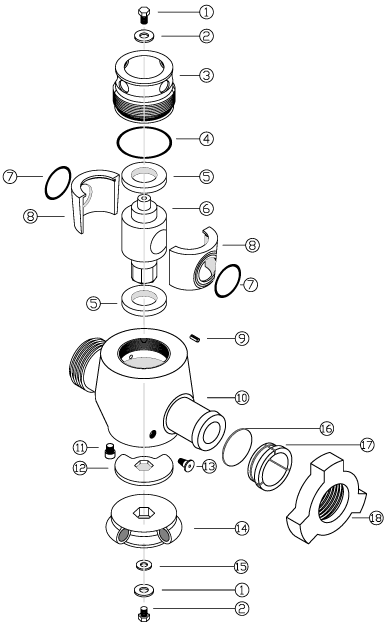

• Replacement Parts

Item #	Description	Quantity Required
1	Capscrew	2
2	Washer - Large	2
3	Adjusting Nut	1
4	Seal Ring, Adjusting Nut	1
5	Seal, Plug	2
6	Plug	1
7	Seal, Insert	2
8	Insert	1
9	Pin, Body	2
10	Body, Plug Valve	1
11	Capscrew, Stop Plate	1
12	Stop Plate	1
13	Grease Fitting	1
14	Handle, Valve	1
15	Washer - Small	1
16	Ring, Spiral	1
17	Split Ring Fig. 1502 Union	1
18	Hammer Nut Fig. 1502	1
