" 1502 FITTINGS & ADAPTERS |

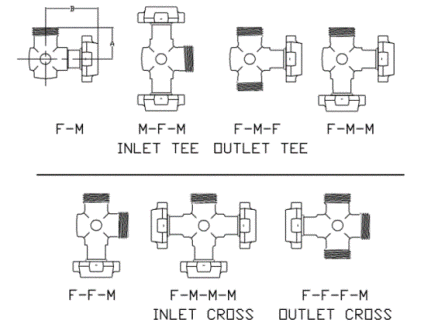

• INTEGRAL 2" 1502 UNION ASSEMBLIES
 |
|
|
|
|
|
|
|
|
|
• 2" 1502 UNION, THREADED & FLANGED CROSSOVERS
| End Connection |
Threaded Connection
|
||||
| 2" Fig. 1502 Male |
X
|
2" L.P. Pin | 2" L.P. Box | 2-3/8" EUE | 2-7/8" EUE |
| 2" Fig. 1502 Male |
X
|
2" Fig. 1502 Male | 2" Fig. 1502 Female | 3" Fig. 1003 Male | 3" Fig. 1003 Female |
| 2" Fig. 1502 Female |
X
|
2" L.P. Pin | 2" L.P. Box | 2-3/8" EUE | 2-7/8" EUE |
| 2" Fig. 1502 Female |
X
|
2" Fig. 1502 Female | 3" Fig. 1003 Female | 3" Fig. 1003 Male | |
| End Connection |
Flanged Connection
|
||||
| 2" Fig. 1502 Male |
X
|
1-13/16"-10M | 1-13/16"-15M | 2-1/16"-5M | 2-1/16"-10M |
| 2" Fig. 1502 Male |
X
|
2-1/16"-15M | 2-9/16"-10M | 3-1/16"-10M | 4-1/16"-10M |
| 2" Fig. 1502 Female |
X
|
1-13/16"-10M | 1-13/16"-15M | 2-1/16"-5M | 2-1/16"-10M |
| 2" Fig. 1502 Female |
X
|
2-1/16"-15M | 2-9/16"-10M | 3-1/16"-10M | 4-1/16"-10M |
Available in Standard and
H2S service.
H2S Svc. made per NACE MR-01-75.
NPT and Autoclave ports are available by customer
request.
Other combinations are available by customer
request.
